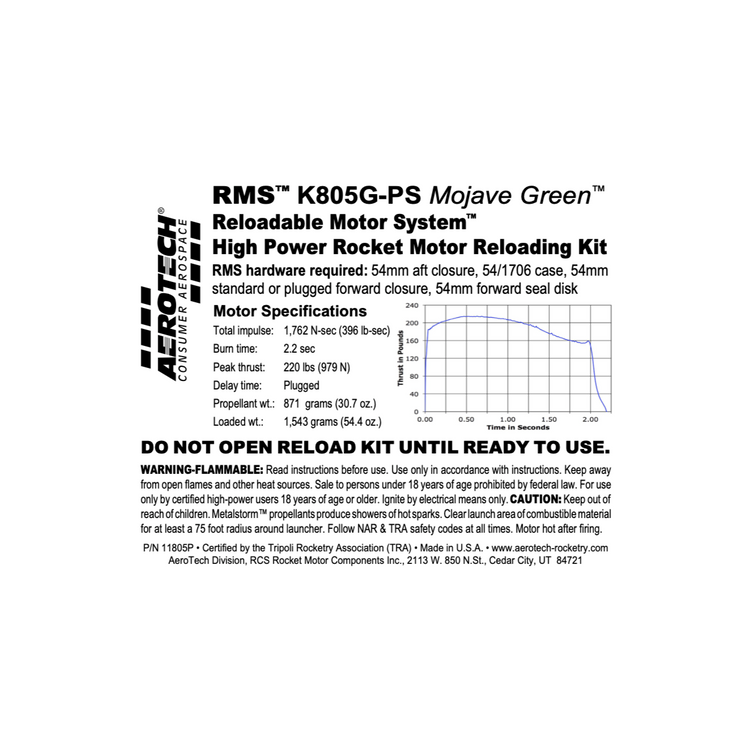

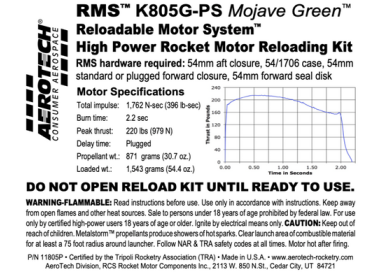

RMS K805G-PS (Requires 54mm Forward Seal Disc)

The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-54/1706 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a forward seal disc (54FSD) during assembly. Important: High Power RMS reload kits are not compatible with Mid Power RMS products.

The K805G-PS is a Plugged/Smoke motor reload. Plugged reload kits do not utilize a motor-actuated delay or ejection charge. Plugged motors must be used in conjunction with a timer, altimeter or radio-activated recovery system.

This RMS motor reload utilizes RCSs exclusive Mojave Green™ aerospace grade composite propellant formulation, which produces a brilliant green exhaust plume with a moderate amount of smoke. Mojave Green™ motors high density and specific impulse delivers a higher total impulse in each motor size than any other AeroTech propellant.

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

Specifications:

Motor Diameter: 2.125 inches (54mm)

Casing Length: 17.20 inches (437mm)

Hardware Required: RMS-54/1706

Total Impulse: 1762 N-sec

Average Thrust: 805 newtons

Peak Thrust: 828.2 N-sec

Thrust Duration: 2.2 seconds

Delay Time: Plugged

Propellant Weight: 871 grams

Motor Weight: 1543 grams

Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
