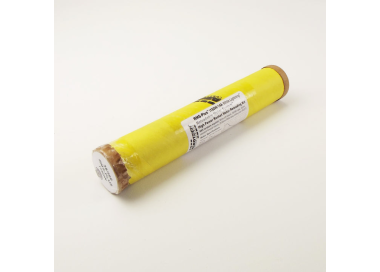

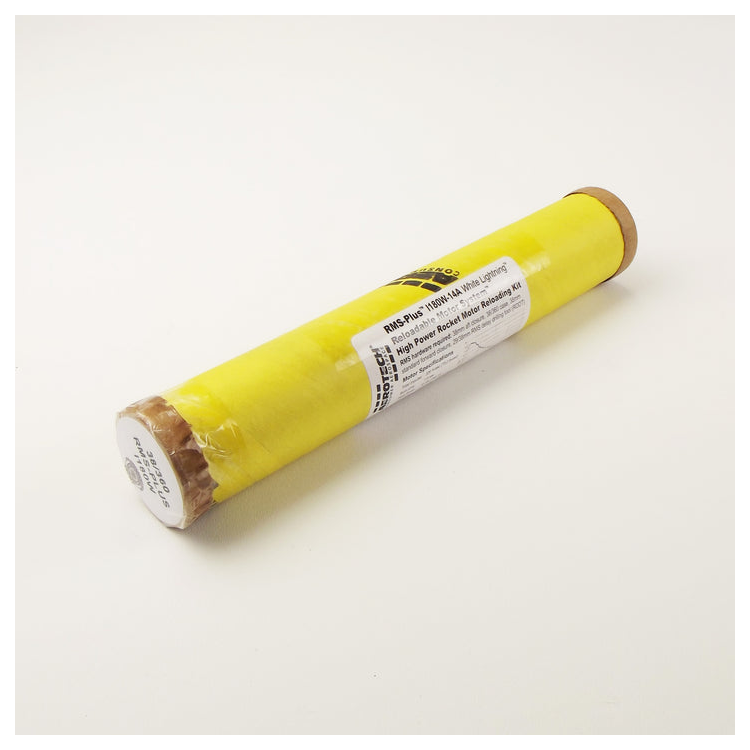

The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-38/360 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. Important: High Power RMS reload kits are not compatible with Mid-Power RMS products. You will need to set the desired delay time using the 18-38mm Delay Drilling Tool (RDDT), not included. The 18-38mm Delay Drilling Tool (RDDT) is available in the AeroTech Accessories section of this website.
This RMS motor reload utilizes RCSs exclusive White Lightning™ aerospace-grade composite propellant formulation, which produces a bright white flame and dense white smoke.
The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators. The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 1 High-Power certification through NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) and proof of Level 1 certification is received.
Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).
Specifications:
Motor Diameter: 1.5 inches (38mm)
Casing Length: 7.91 inches (201mm)
Hardware Required: RMS-38/360
Total Impulse: 325.6 N-sec
Average Thrust: 180 newtons
Peak Thrust: 329.4 N-sec
Thrust Duration: 1.65 seconds
Delay Time: adjustable up to 14 seconds
Propellant Weight: 171 grams
Motor Weight: 316 grams
Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
