AeroTech N3300R-PS RMS-98/15360 Reload Kit (1 Pack) - 14330P
AeroTech N3300R-PS RMS-98/15360 Reload Kit (1 Pack) - 14330P
RMS N3300R-PS SDL Required (Requires Forward Seal Disc)

RMS N3300R-PS SDL Required (Requires Forward Seal Disc)

€1,995.00
Tax included Depends on order
Quantity

0 review(s)
ARO-14330P
The N3300R-PS is a Plugged/Smoke motor reload. Plugged reload kits do not utilize a motor-actuated delay or ejection charge. Plugged motors must be used in conjunction with a timer, altimeter or radio-activated recovery system.

Security policy

We take good care of your privacy. We only share your information with the authorities when needed.

Delivery policy

All rocketmotors will be shipped according to ADR rules.

Return policy

Rocketmotors and reloads can never be returned and refunded.

This RMS motor reload utilizes RCSs exclusive Redline™ aerospace grade composite propellant formulation, which produces a visible scarlet flame. Redline™ motors burning rate lies midway between that of White Lightning™ and Blue Thunder™. Photos don’t do justice to the “laser-beam” intensity and color of Redline™…. you have to see it to appreciate it!
The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators.  Also, this motor is SDL and requires special handling by Euro Space Tech.
Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

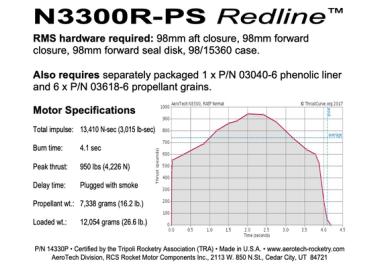

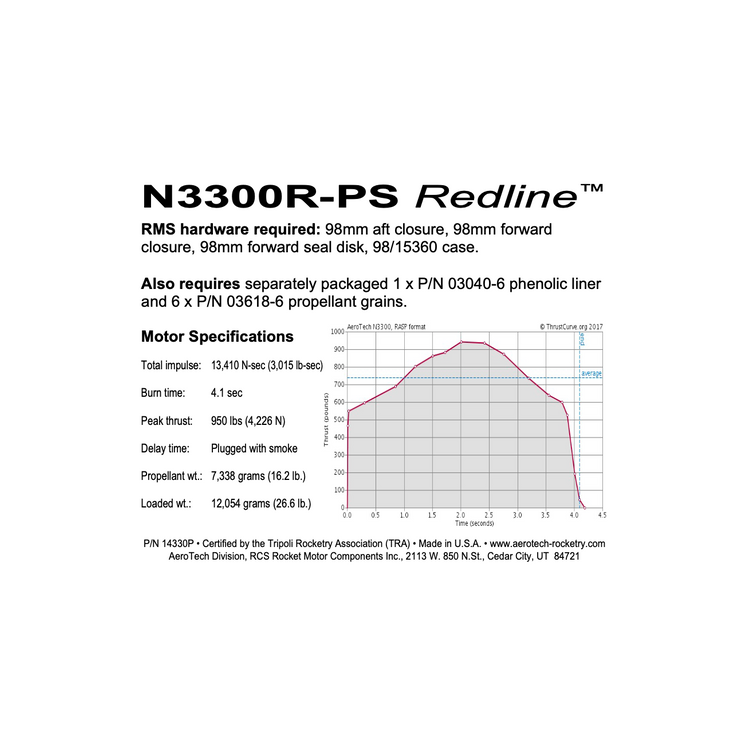

Specifications:
Motor Diameter: 3.875 inches (98mm)
Casing Length: 41.18 inches (1046mm)
Hardware Required: RMS-98/15360
Total Impulse: 14041 N-sec
Average Thrust: 3168 newtons
Peak Thrust: 4301 N-sec
Thrust Duration: 4.4 seconds
Delay Time: Plugged
Propellant Weight: 7512 grams
Motor Weight: 12054 grams
Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
ARO-14330P
4 Items

Data sheet

PROPELLANT TYPE
REDLINE
MOTORTYPE
RMS
MOTOR CLASS
N MOTORS
TOTAL IMPULSE
14.000 - 15.000 Ns
MOTOR DIAMETER
98MM
HARDWARE NEEDED
RMS-98/15360
