These high performance, composite propellant model rocket motors use the same family of solid propellant as NASA’s Space Shuttle Boosters, military missiles, sounding rockets, and NASA’s future SLS moon rocket. They utilize a patent pending high-strength polymer case and bulkhead, polymer nozzle and RCSs exclusive Redline™ aerospace grade composite propellant formulation, which produces a visible scarlet flame. Redline™ motors burning rate lies midway between that of White Lightning™ and Blue Thunder™. Photos don’t do justice to the “laser-beam” intensity and color of Redline™…. you have to see it to appreciate it!
Security policy
We take good care of your privacy. We only share your information with the authorities when needed.
Delivery policy
All rocketmotors will be shipped according to ADR rules.
Return policy
Rocketmotors and reloads can never be returned and refunded.

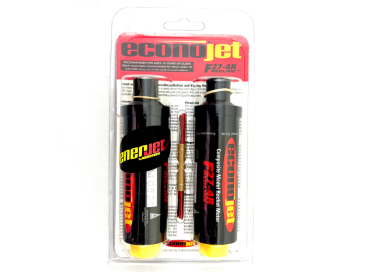

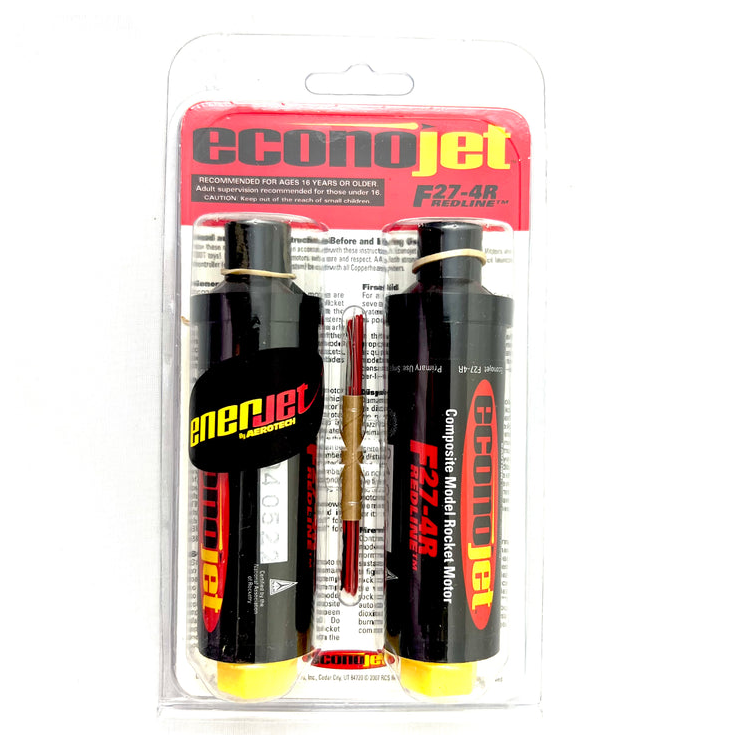

This AeroTech motor pack comes with 2 rocket motors and 2 FirstFire™ Jr. Initiators.
Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).
Specifications:
Motor Diameter: 1.125 inches (29mm)
Casing Length: 3.28 inches (83mm)
Total Impulse: 49.6 N-sec
Average Thrust: 24.4 newtons
Peak Thrust: 37.7 N-sec
Thrust Duration: 2.03 seconds
Delay Time: 4 or 8 seconds
Propellant Weight: 28.4 grams
Motor Weight: 79 grams
Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
ARO-62704
1 Items
Data sheet
PROPELLANT TYPE
REDLINE
MOTORTYPE
SINGLE USE
MOTOR CLASS
F MOTORS
TOTAL IMPULSE
0 - 50 Ns
MOTOR DIAMETER
29MM
Specific References
EAN13
094433627040
